Backlit light box signs

Fabricated backing box in metal, stainless steel or aluminum mostly, or acrylic, LED on the backpanel as the light source under the signs content, bright, long life and good weatherproof, work well indoor outdoor. Could be single-sided-lit or double-sided-lit, be round or square, fit for business (storefront, shop, office, restaurant, etc.), house, building, church, school, reception and wall.

Detail of Backlit light box signs

Backlit light box signs

Features

Default thickness
50mm(1.97")
Box material
Acrylic, stainless steel or aluminum
Light source
LED by default
Light position
on the backing box back-panel
Production time
In 15 business days by default
Installation
Fix on the wall or hang from ceiling
  • Could be single-sided-lit or double-sided-lit.
  • Backlit light box signs have much better weatherproof performance.

Signs content

Effect - Ⅰ
Models:

  • Painted on backlit film then add on the acrylic surface of the box.
  • produced by laser cutting color vinyl then add on the acrylic surface of the box.
Signs content is illuminated, the acrylic surface of the box is illuminated
Effect - Ⅱ
Models:

  • UV painted on the acrylic surface of the box directly.
  • produced by laser cutting black vinyl, black acrylic, metal, etc., then add the opaque signs content on the acrylic surface of the box.
Signs content is non-illuminated, the acrylic surface of the box is illuminated
Effect - Ⅲ
Signs content be cut off on the metal surface of the backing box then add one laser cutting acrylic panel under the content.
Signs content surface is illuminated, the metal surface of the box is non-illuminated
Effect - Ⅳ
Signs content be cut off on the metal surface of the backing box, add one laser cutting acrylic panel under the content,then push a laser cutting solid opal acrylic signs content through the metal box surface.
Signs content surface and border are illuminated, the metal surface of the box is non-illuminated
Effect - Ⅴ
Signs content be cut off on the metal surface of the backing box, add one laser cutting acrylic panel under the content,then push a laser cutting solid opal acrylic signs content through the metal box surface, finally painted the solid acrylic signs surface or add laser cutting opaque signs on the solid acrylic signs surface. The opaque signs could be produced by laser cutting black vinyl, laser cutting black acrylic, laser cutting metal, etc.
Signs content surface is illuminated, the metal surface of the box is non-illuminated
  • Can add the halo effect for the single-sided-lit light box signs with metal box.

Backing box

Material
304/316 stainless steel or alumium or acrylic
Process
Fabrication, laser cutting, laser welding
Default thickness
50mm(1.97")
Finishes
  • Acrylic
  • Mirror polished stainless steel
  • Brushed stainless steel
  • Gloss powder coat paints
  • Semi-gloss powder coat paints
  • Flat powder coat paints
  • Mirror polished gold plating
  • Brushed gold plating
  • Satin gold plating
  • Mirror polished rose gold plating
  • Brushed rose gold plating
  • Satin rose gold plating
  • Mirror polished titanium plating
  • Brushed titanium plating
  • Satin titanium plating
  • Mirror polished copper plating
  • Brushed copper plating
  • Satin copper plating
  • Mirror polished brass plating
  • Brushed brass plating
  • Satin brass plating
  • Mirror polished bronze plating
  • Brushed bronze plating
  • Satin bronze plating
  • Vintage copper
  • Vintage brass
  • Vintage bronze
  • Wood Grain
Shapes
  • Round
  • Rectangle
  • Square
  • Oval
  • Other custom shapes
  • 304 stainless steel fit for most surrounding, 316 stainless steel would be used for the signs in marine environment.
  • Aluminum is lighter than stainless steel, better for large light box signs.
  • Plating process, vintage process and wood grain process would be finished by our partner, would cause about additional 2 business days for the production.

LED lights

LED type
LED module, LED strip, PCB LED
Life time
More than 100,000 hours
Lighting color
  • White (about 6k color temperature)
  • Warm white (about 4k color temperature)
  • Red
  • Blue
  • Green
  • Yellow
  • Orange(RGB)
  • Pink(RGB)
  • Purple(RGB)
  • Using the BlueView brand LED by default. Also have Cree brand LED.
  • For the outdoor signs we will use the water-proof LED lights.

Electrical Wiring

Type
Plenum copper wire by default
Specification
1.5mm2 (AWG 16) by default
Default Length
60cm(23.62")
  • Suggest using 2.5mm2 (AWG 14) for the trunk wire at least
  • Trunk wire would not be provided by default.

AC transformer

Brand
Mean Well
Type
waterproof or non-waterproof
Input
110v~240v AC
Output
12v DC
  • waterproof AC transformer is using LP Series by default, IP67, -30~70℃ wide operation range
  • Non-waterproof AC transformer is using LRS Series by default, 300VAC input surge, 5G vibration, 70℃ operation

Others

Certificate
CE, UL, ROHS
Intensity
-30~70℃
Warranty
One Year
Accessories
  • stud bolts
  • nuts
  • washers
  • 1:1 layout template
  • wiring diagram
  • installation diagram
  • Stud bolts is necessary for installation, used to fix the signs on the backing wall
  • Nuts and washers are only fit for situation that people can work at the another side of the backing wall, then can use washers and nuts to secure the stud bolts to the wall.

Warranty

  • In one year, if it is not the man-included damage, we will send you the damage part
  • After 2 year, because of the half-life, the LED lighting would be weaker. In order to keep the effect of the signs, we suggest changing the LED lights when you feel the brightness could not reach your requirement.

RESOURCES

Quick form

Our signs products are all customized, different detail would cause different cost. The more detail you can provide, the more exact price we will provide.

CAPTCHA image

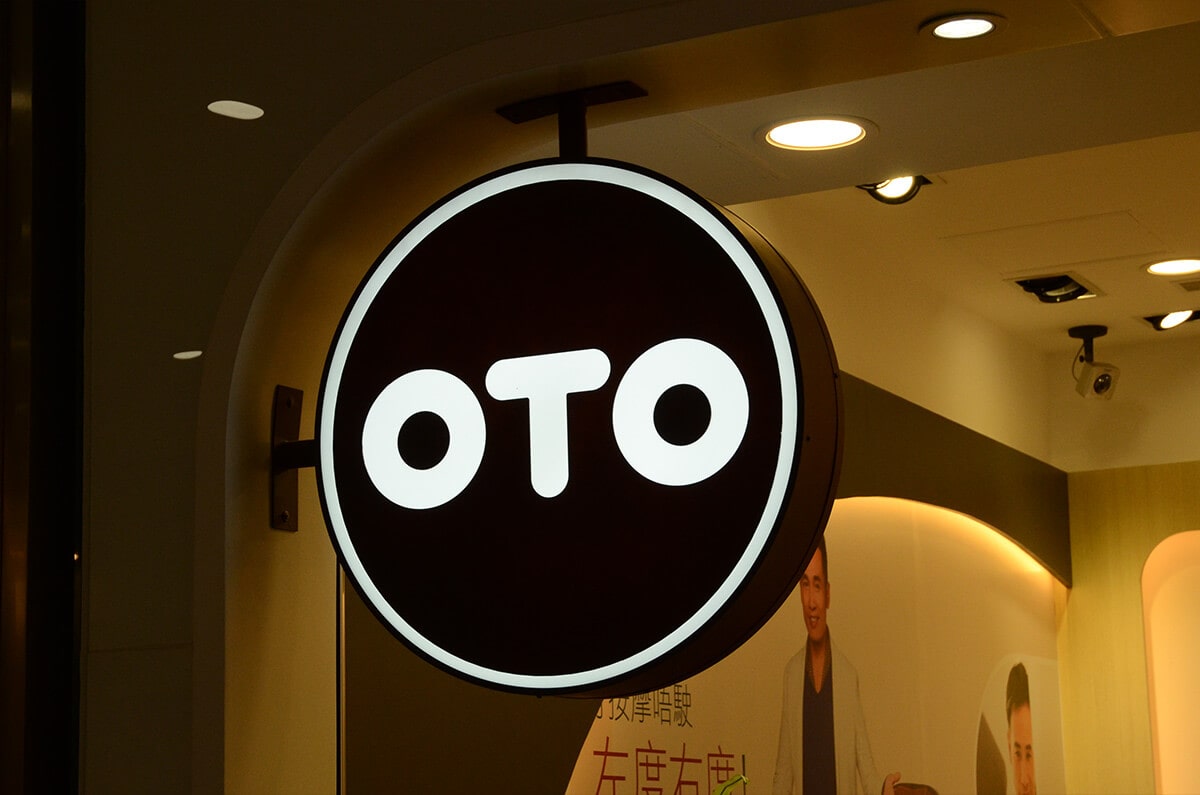

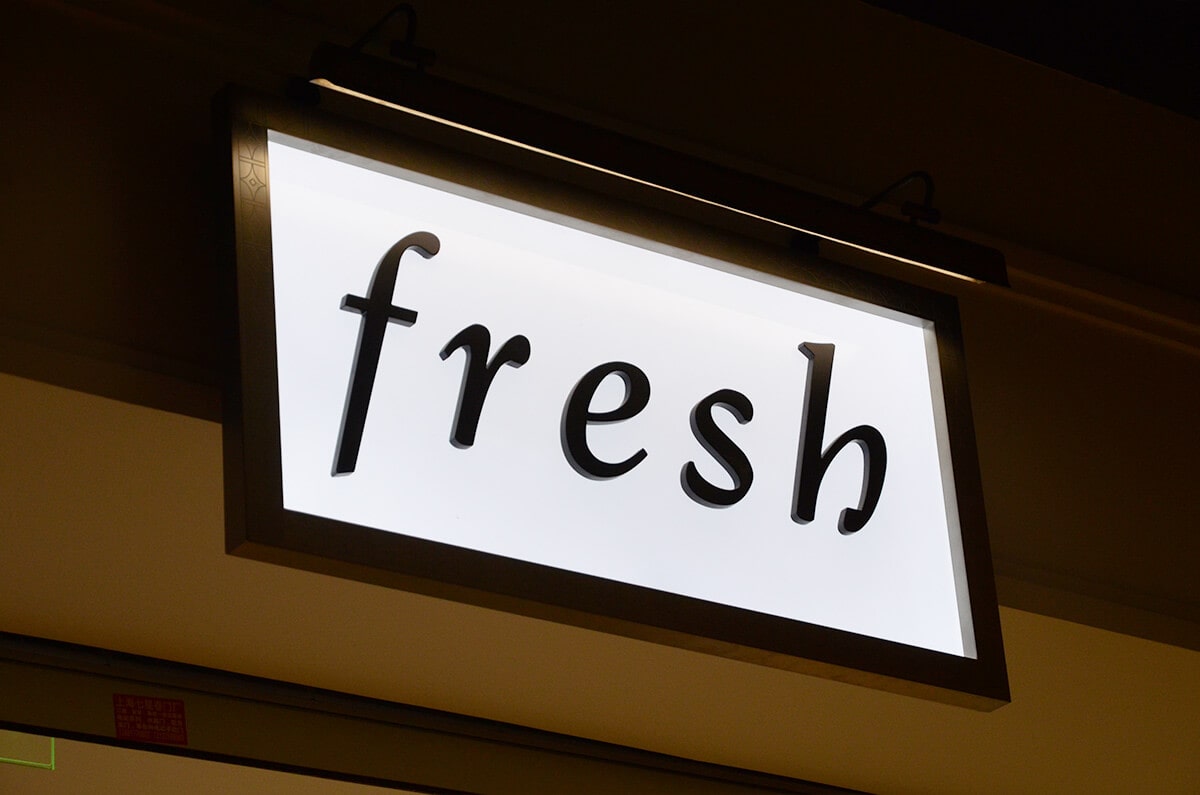

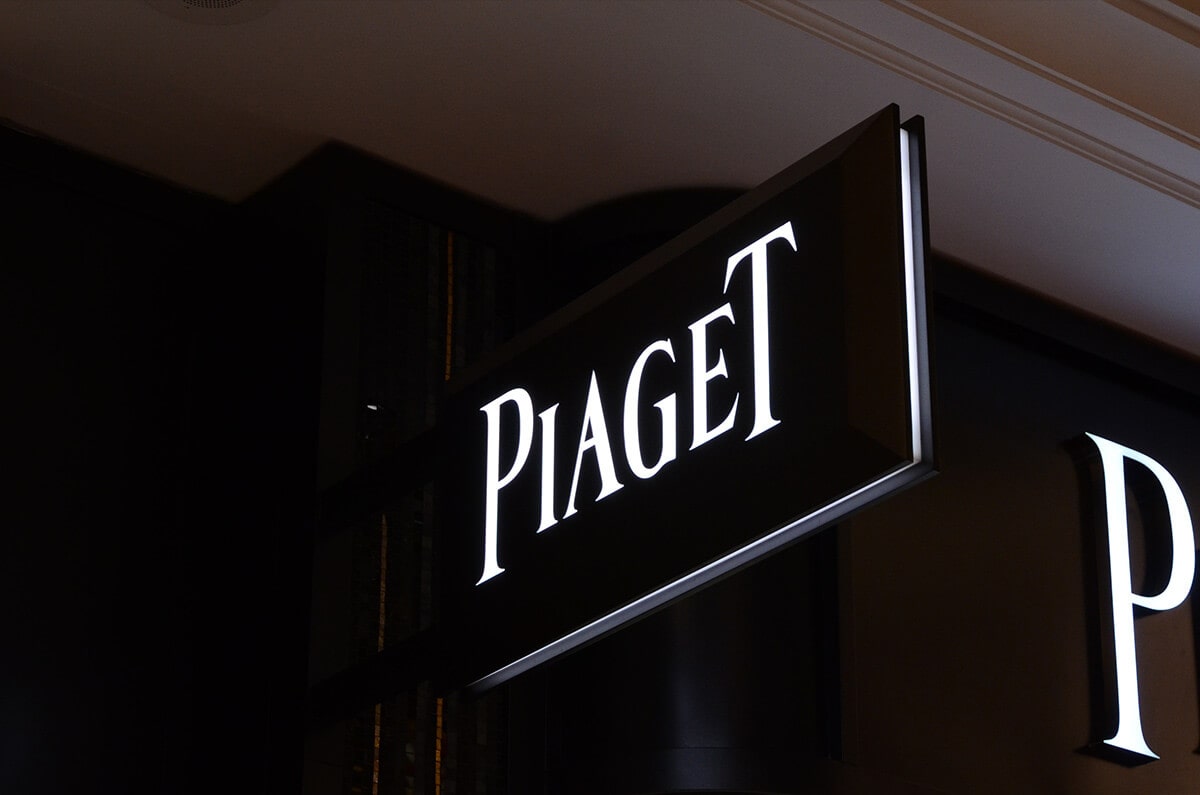

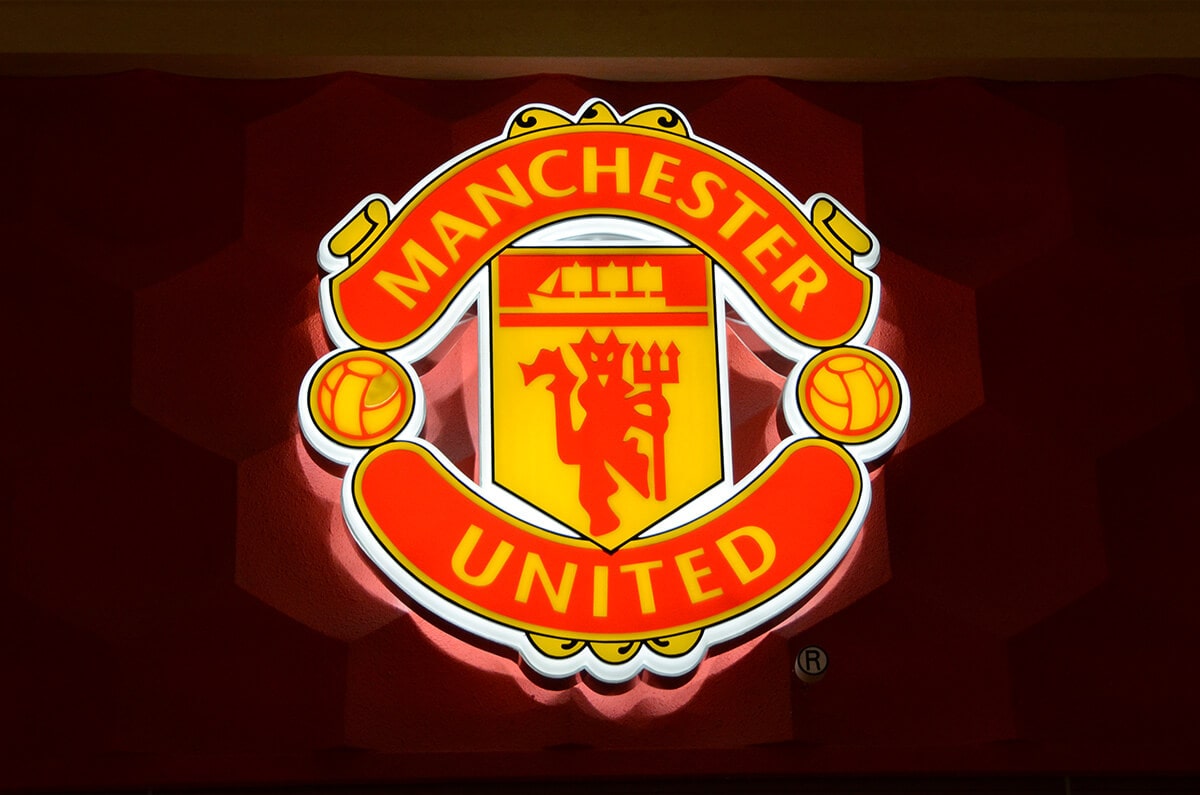

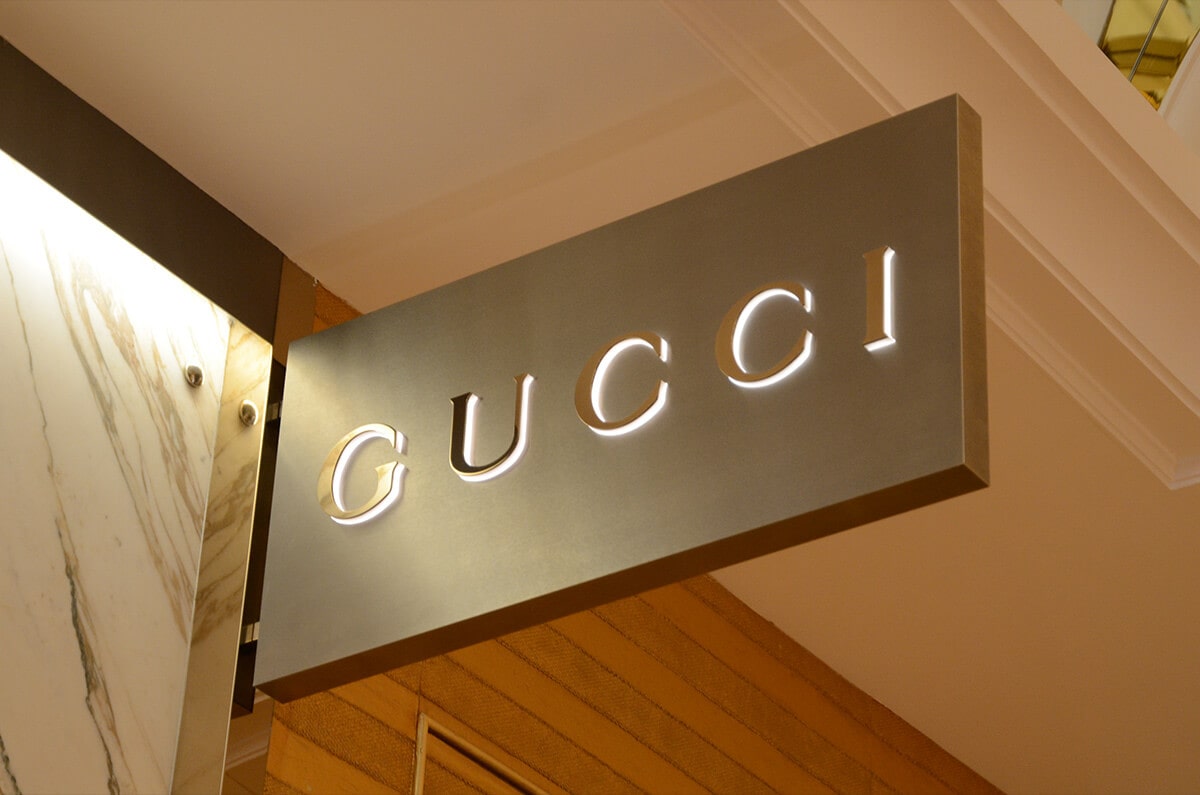

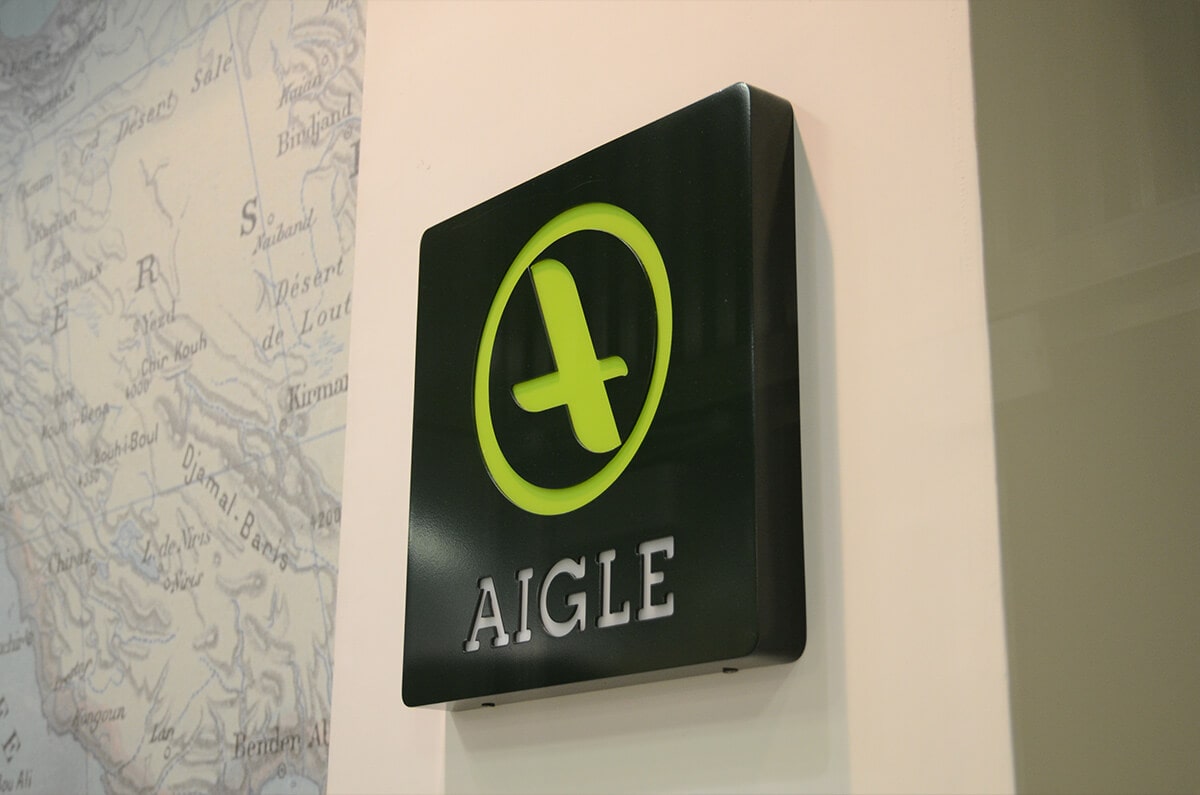

Light box signs sample case

More Lightbox Signs Sample

LED light box signs

LED light box signs use LEDs as the light source, which is bright, colorful, long life, weather proof and be more durable and reliable. Acrylic or laser cut metal to be the surface of the backing box, fabricated acrylic or metal box border and back-panel, lighting pass through the surface to display the letter, logo or even graphics. Could be single-sided-lit or double-sided-lit, be used indoor or outdoor, be hung or fix on the wall directly with custom made content, dimensions. Our high quality custom made LED light box signs fit for business or home well.

Workflow

Here you will know our workflow well

  1. 1: Contact with us

    Contact with us or fill our free quote form, we will arrange one of sales follow your quote and jobs.

  2. 2: Initial design

    If you do not have the design file as we needed, we will provide initial design service which include the choosing fonts, dimensions confirmation, etc.

  3. 3: Free quotation

    Based on your request and the design file, we will give you the exact cost.

  4. 4: Order confirmation

    Please print our quotation file, signature it and send us the scanned file.

  5. 5: Deposit payment

    Please finish the deposit payment, then show us the bank slip etc. so that our accounting can confirm it.

  6. 6: Drawing design

    We will detail the design file of your signs, then we will send the file to you to show you all the details.

  7. 7: Begin production

    When we get the confirmation of the detail design file, we will begin the production.

  8. 8: Lighting test

    Your signage would be a 24 hours keep lighting test when we finish the production, so that most issue could be fix.

  9. 9: Final products

    We will take photos for your signage to show you the final products effect.

  10. 10: Balance payment

    When you confirm the products, please send us the balance payment, then show us the bank slip etc. so that our accounting can confirm it.

  11. 11: Shipping

    We will call the delivery company to pick up your signage products and give you the waybill number so that you can track it.

  12. 12: After sale

    We provide one year free replacement to non-human damaged signs.

Professional outdoor light box signs

Our outdoor light box signs use the waterproof LEDs as lighting source fit most outdoor surrounding, include the strong sunlight, heavy rain, rain season, high or low temperature and marine environment. We have rich experience in producing the exterior weather-proof signs, just tell us your worry we will resolve it.

Why choosing us?

We do custom light box signs production professional

  • Experience

    With over 15 years of successful experience and knowledge in produce signs, we do know how to produce signs well for the world.

  • Price

    Orders directly from manufacturers to reduce intermediate expenditure. Buy high-quality custom signs with more reasonable price.

  • Quality

    We provide you with high quality signs produced by our experienced technicians using advanced machine and high quality raw materials.

  • Lead Time

    Depending on the type and quantity of ordered signage products, we generally need about 15 business days to complete the signs production.

  • Accessories

    Provided with 1:1 layout template, stud bolts, nuts, installation diagram and other installation accessories per the needs of the customers.

  • Warranty

    Provided free one year non-human damage limited warranty, and also provides 2-5 years limited warranty policy with enrollment fees.
